Guide Lines for T-Tronik SPORT Battery percentage fix

Step 1

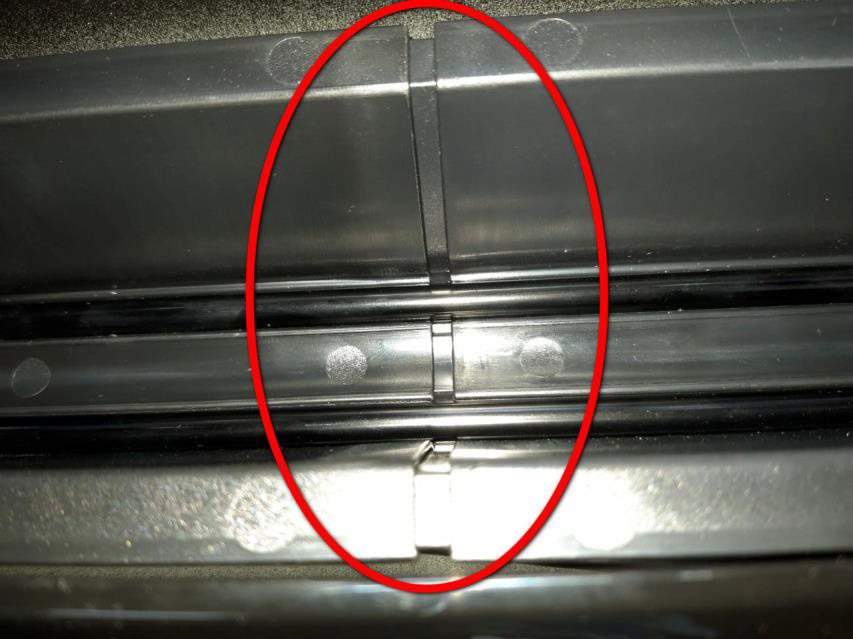

Remove the battery from its seat, You will notice some space between the two sections of the battery seat, as shown in pic.1.

Pic. 1

Step 2

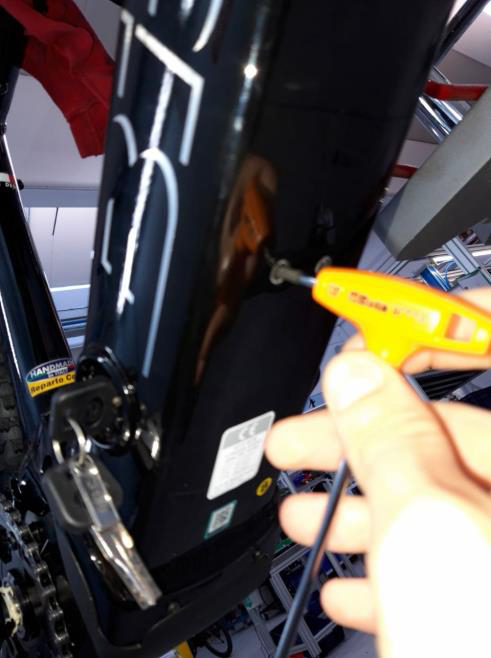

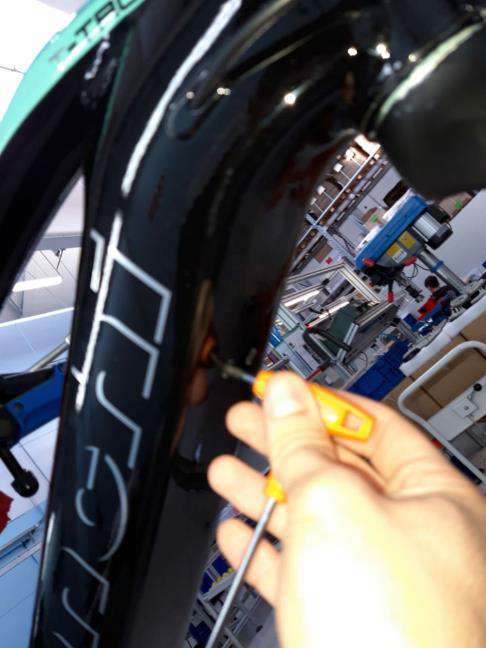

Loosen all the 4 torx screws under the downtube, as in pic. 2 and 3.

Pic. 2

Pic. 3

Step 3

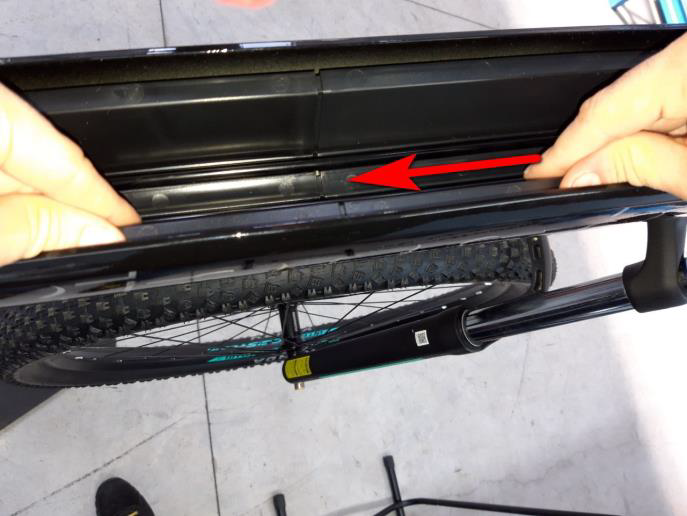

Match the 2 sections pulling down the upper one and removing the space between them as in pic.4.

Pic. 4

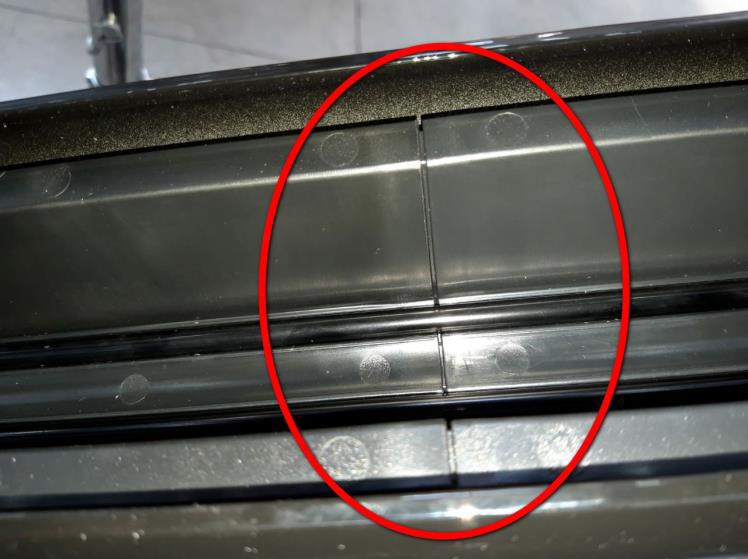

Tighten the screws holding the 2 sections together.

 Pic. 5
